Accuride Drawer Slide 2132

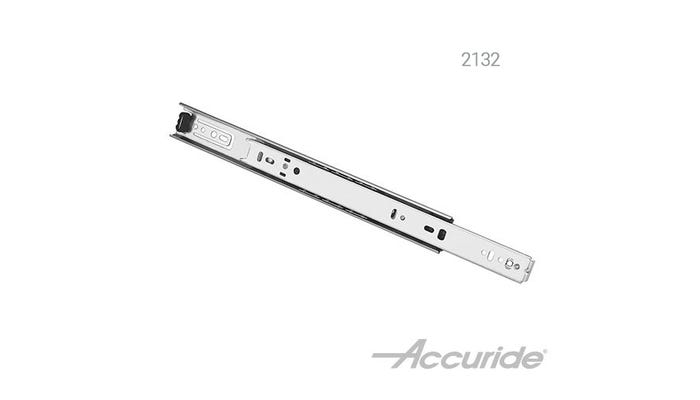

Drawer Slide 2132 by Accuride International, Inc.
3/4 Extension rated 75 lbs. at 22″ in length.
Shallow, smooth-motion hardware engineered with a low-profile and lever-disconnect
Ideal for small, shallow drawers
For drawers up to 16” wide
The BHMA-certified 2132 slide also boasts a hold-in detent and patented Cam Drawer Adjust for precise vertical adjustment.
The North American Architectural Woodwork Standards (NAAWS) requirements for roller and ball-bearing slides are shown in section 10.5.1.8.1 through 10.5.1.8.2.4.
Drawers 24″ or less in width (either roller or ball-bearing): 50lb for pencil drawers, 75lb for general purpose and 100lb for file drawers.
Drawers over 24″ in width (ball-bearing only): 50lb for pencil drawers, 75lb for general purpose, 150lb for lateral files less than 30″ in width, and 200lb for lateral files over 30″ in width.
